Viking Super Series Centerless Grinder

Home » Machinery » Viking Super Series Centerless Grinder
Viking
Viking
Viking Grind Spindle
Viking
Viking
Viking Grind Spindle

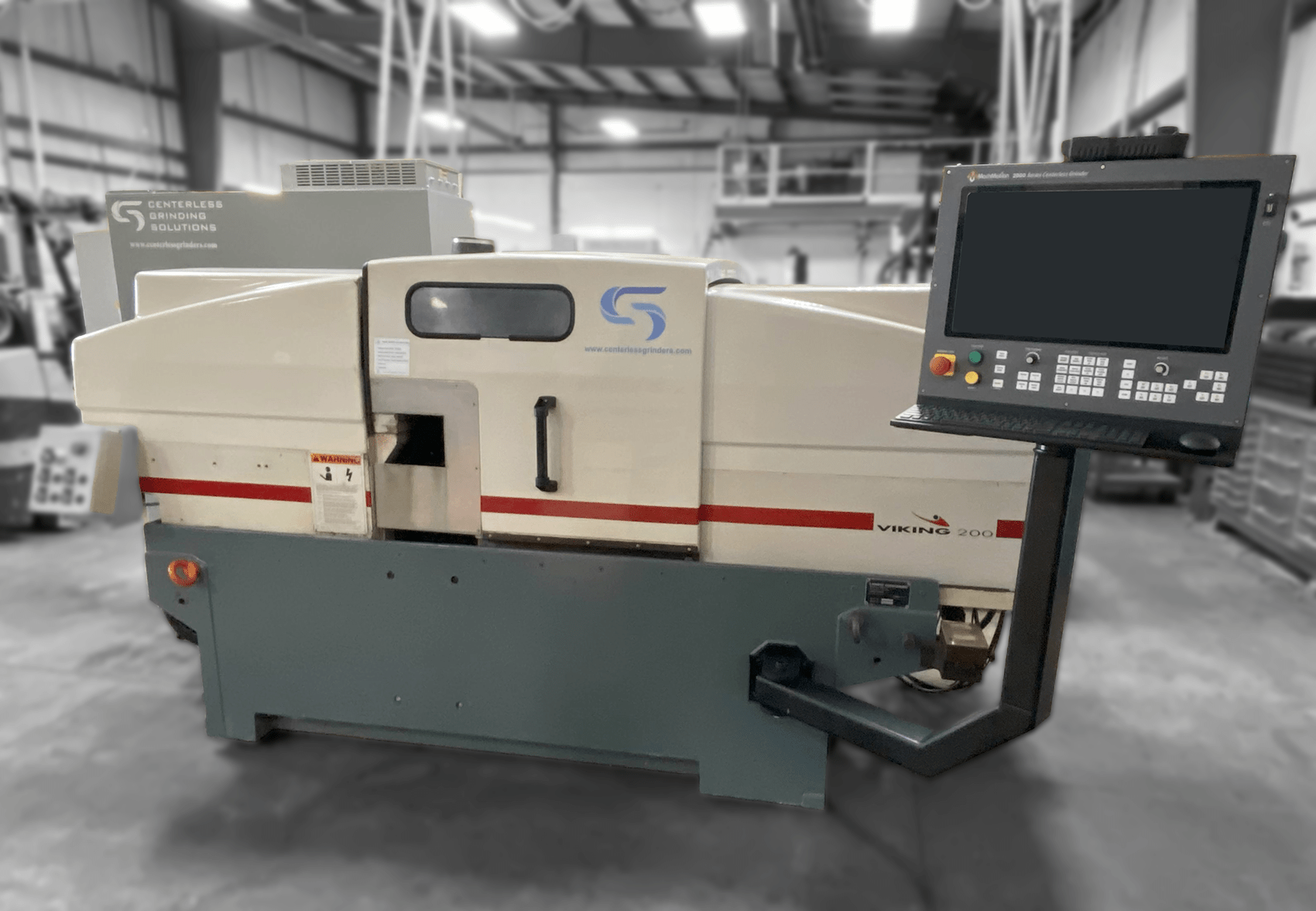

Viking Super Series Centerless Grinder

The Landis Viking Super Series Centerless Grinder delivers exceptional precision and versatility across a wide range of applications. Remanufactured and upgraded by Centerless Grinding Solutions, the Viking is built for high-volume production and tight-tolerance part finishing—from aerospace and automotive components to complex medical parts. With compatibility for both super-abrasive and conventional wheels, this machine adapts to diverse grinding needs. Its thermally stable bed design and anti-friction slide-way systems ensure consistent accuracy, while the “Twin Grip” dual support spindle bearings provide superior rigidity and reduced deflection during operation.

  • Precision Centerless Grinding for High-Volume Production
  • Super-Abrasive and Conventional Wheel Compatibility
  • 0.001 mm Machine Resolution
  • Thermally Stable Bed Design for Enhanced Accuracy
  • Anti-Friction Slide-Way Systems
  • “Twin Grip” Dual Support – Anti-Friction Spindle Bearings
  • Plunge-Feed and Through-Feed Operation

Available Machine Upgrades

  • CNC Truing System
  • Super-Abrasive Wheel Compatibility
  • Eaton Cutler-Hammer Variable Frequency Drive
  • Infeed/Outfeed Systems for Automation
  • Integrated Gauging System
Capacities S.A.E METRIC
Minimum workpiece diameter 0.050 in 1 mm
Maximum workpiece diameter 2.5 in 60 mm
Wheelhead
Grinding Wheel Max Diameter 16.00 in 405 mm
Surface Feet Per Minute 8.00 in 205 mm
Grinding Wheel Horsepower 20 HP 15 kw
Regulating Wheel
Regulating Wheel Size-Width 10.00 in 255 mm
Regulating Wheel Max Diameter 2.00 in 305 mm
Regulating Wheel RPM 10-600 RPM
Regulating Wheel HP 4.4 hp 3.3 kw
Machine Weight (approx.) 20,000 lbs 9,072kg
** Horsepower Upgrade Available
